Flawless Labeling,
High Speed.

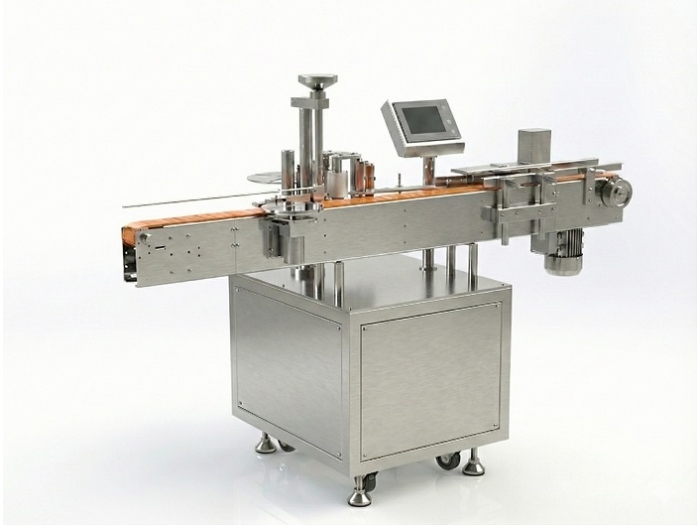

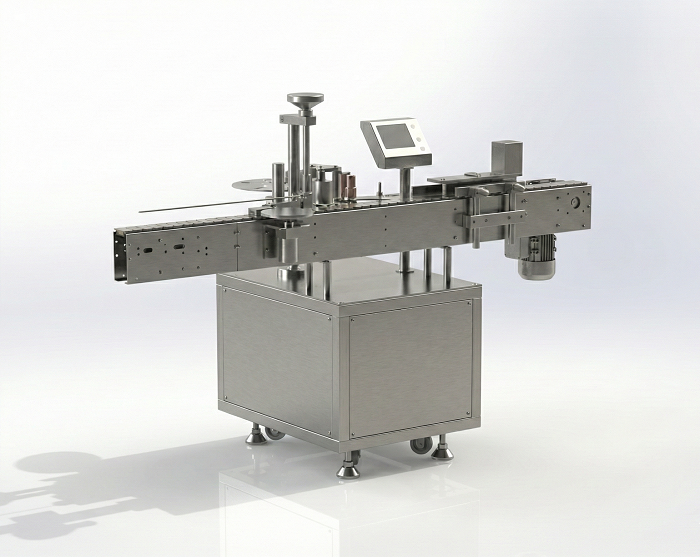

LB-60 Automatic Round Bottle Labeler
60 BPM · ±1mm Accuracy · Self-Adhesive
The Specialist for Cylindrical Containers. Say goodbye to bubbles and wrinkles.
Designed for food, supplements, and cosmetics, using a synchronous rolling mechanism to ensure a premium finish.
Precision
± 1.0 mm
Why LB-60?
Solving 3 Major Labeling Pain Points
Zero Bubbles & Wrinkles
Manual labeling often fails with transparent labels. The LB-60 uses a Synchronous Rolling Mechanism to press the label as it applies, ensuring a perfect finish.
60 BPM Efficiency
Labels up to 60 bottles per minute, equivalent to 3-5 skilled workers. Drastically reduce labor costs and meet tight deadlines with ease.
Quick Changeover
Fits bottle diameters from 30-100mm. Adjust guide rails and label height via handwheels in minutes—no complex tools or expensive molds required.
How It Works
Fully automated from infeed to output.
Infeed & Spacing
Bottle separator wheel creates consistent gaps between bottles.
Sensor Detection
Fiber optic sensors detect bottle position and trigger the label dispenser.
Dispensing
Servo motor dispenses the label precisely onto the bottle surface.
Rolling & Pressing
Rolling belt spins the bottle to press the label flat without bubbles.
Technical Specifications
Performance
- Bottle Type Round Cylindrical
- Speed 20 - 60 BPM (Depends on label)
- Accuracy ± 1.0 mm
- Bottle Dia. Ø 30 - 100 mm
Labels & Power
- Label Type Self-Adhesive (Roll)
- Label Width 10 - 100 mm
- Roll Inner Dia. Ø 76 mm
- Power AC 110V/220V, 50/60Hz
Need to see it in action?
Contact us via Email to get the operation video for the LB-60.
Request Video →FAQ
What bottle sizes can LB-60 handle?
The LB-60 is suitable for cylindrical containers with a diameter of 30mm to 100mm. For sizes outside this range, we offer customized machine options.
Does this machine prevent bubbles?
Yes. The LB-60 is equipped with a specialized "Synchronous Rolling Mechanism" that presses the label as it is applied, effectively preventing bubbles and wrinkles, especially for transparent labels.
Can I test before shipping?
Absolutely! We follow a strict Factory Acceptance Test (FAT) process. We invite you to bring your bottles and labels to our factory for a live trial run to ensure precision and quality before shipment.
