Double Capacity.
Automated.

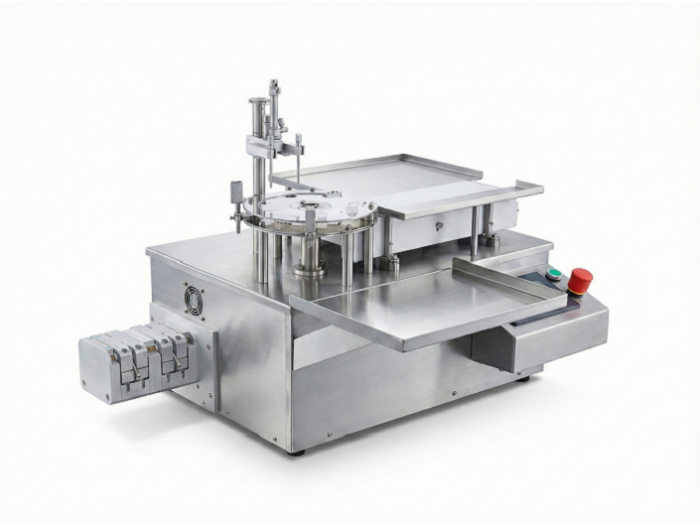

FH-100-2 Tabletop Dual Head Filler
Compact Design · Dual Diving Nozzles · Auto Output
A fully automated production line designed for limited spaces.
Utilizing rotary indexing and dual-head filling, it boosts capacity by 200%, handles foaming liquids, and automatically outputs finished bottles.
Feature
Tabletop Automation
Automated Workflow
From manual loading to automatic output, a highly efficient line operated by one person.
1. Manual Loading
Operator places empty bottles into the tabletop starwheel jig.
2. Indexing & Diving
Starwheel positions bottles. Nozzles automatically dive into the bottles.
3. Dual Filling
Two pumps fill simultaneously. Nozzles rise as liquid level increases.
4. Auto Output
Finished bottles are moved to the collection area via conveyor.
Compact Efficiency
Why Upgrade to FH-100-2?
Space-Saving Design
Unlike floor-standing machines, the FH-100-2 fits directly on a standard workbench. Perfect for labs or small facilities with limited space.
Double the Output
Equipped with dual pump cores and automatic bottle feeding, filling two bottles at once. Double your output in the same amount of time.
Anti-Foaming Diving
For foaming liquids (e.g., shampoo), nozzles feature a "Diving Function". They fill from the bottom up, suppressing foam and keeping bottle necks clean.
Technical Specifications
Performance
- Model Style Tabletop
- Pump Core FH-100 x 2 Units
- Fill Range 10 - 3000 ml
- Speed Double Speed (Depends on Viscosity)
Configuration
- Positioning Tabletop Starwheel
- Filling Mechanism Pneumatic Diving (Air Required)
- Output Powered Conveyor + Collection
- Power AC 110V/220V, 50/60Hz
FH-100-2 is the high-efficiency dual-head model in the "FH Smart Series".
For single-head simplicity or industrial high-flow options, please see the full series overview.
