High-Flow King.
Powerful Output.

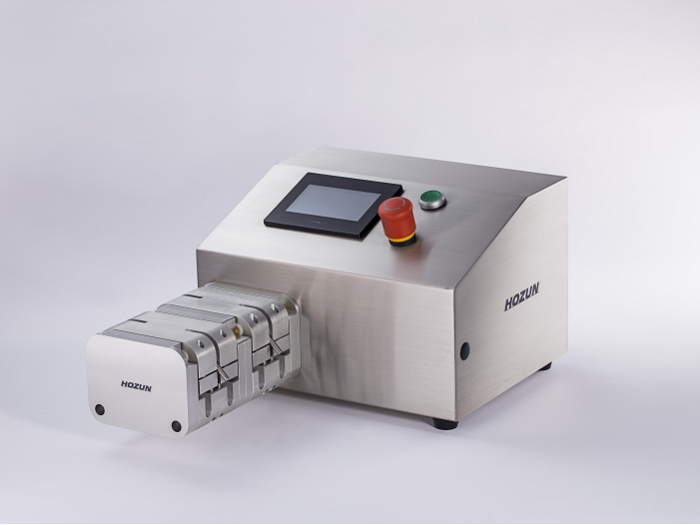

FH-500 Industrial Peristaltic Pump
For 100–3000ml Volumes · Chemicals / Food / Oils
Engineered for high-volume production. Featuring a robust stainless steel body and high-torque brushless motor.
Perfect for chemical solvents, food oils, and bulk container filling.
1-Year Warranty · Industrial IP Rating
Max Flow
3000 ml/min
Why FH-500?
Built for Harsh Environments
IP Rated Protection
Sealed body design prevents moisture and dust ingress. Ideal for wash-down food environments or dusty chemical plants. Far more durable than standard lab pumps.
3000ml/min Power
Powered by an industrial brushless motor delivering stable, high torque. Quickly fills 1L+ bottles to keep your production line moving without bottlenecks.
SUS304 Stainless Body
GMP and food-grade compliant. Resistant to acid/alkali corrosion. Smooth surface allows for easy wipe-down cleaning and prevents residue buildup.
Specifications
Designed for continuous heavy-duty operation. The most stable and durable in its class.
| Model | FH-500 Industrial Peristaltic Pump |
| Fill Range | 100 - 3000 ml (High Flow) |
| Max Flow Rate | 3000 ml/min |
| Control | Color Touchscreen (Flow/Time Modes) |
| Body Material | Full SUS304 Stainless Steel |
| Protection | IP31 (Higher rating optional) |
Included Accessories:
- Industrial Silicone Tubing x 1
- Foot Pedal x 1
- High-Flow Nozzle x 1
- Submersible Sinker x 1
Quick Check: Is FH-500 for me?
- Bottles over 1 Liter
- Chemical Solvents / Acids
- Food Oils / Sauces / Shampoo
- Humid / Dusty Areas
- Micro-dosing under 100ml
- High-precision Lab Titration
- Extremely Limited Desk Space
Explore the Complete FH Series
FH-500 is the heavy-duty industrial model in the "FH Smart Series", designed for high-flow applications.
For precision lab dosing (<100ml) or mid-sized production (<500ml), please see the full series overview.
Viscosity Compatibility Guide
Equipped with a high-torque motor, suitable for low-to-medium viscosity liquids under 3000 cPs. Peristaltic action is ideal for shear-sensitive or foaming liquids.
- • Water / Alcohol
- • Essential Oils
- • Juice / Tea
- • Ink / Dye
- • Glycerin / PG
- • Shampoo / Soap
- • Diluted Honey
- • Light Motor Oil
*Larger tubing recommended
- • Toothpaste / Cream
- • Vaseline / Paste
- • Jam with Chunks
- • Super Glue / Resin
Note: Higher viscosity reduces flow rate.
Applications
Chemical Filling
Detergents, solvents, plating solutions. Non-contact pumping action plus chemical-resistant tubing handles strong acids/alkalis safely.
Food & Beverage
Edible oils, fructose, soy sauce. Sanitary design compliant with food regulations. High flow rate quickly fills bulk containers.
Filtration & Circulation
Beyond filling, the powerful suction of FH-500 makes it perfect for lab or production filtration, circulation, and transfer tasks.
